Source Code

#hexdump for RISC-V emulator: rars
.data
title: .asciz "hexdump program in RISC-V assembly language\n\n"

# test string of integer for input
test_int: .asciz "10011101001110011110011"
hex_message: .asciz "Hex Dump of File: "
file_message_yes: "The file is open.\n"
file_message_no: "The file could not be opened.\n"
file_data: .byte '?':16
           .byte 0
space_three: .asciz "   "

#this is the location in memory where digits are written to by the putint function
int_string: .byte '?':32
int_newline: .byte 10,0
radix: .byte 2
int_width: .byte 4

argc: .word 0
argv: .word 0

.text
main:

# at the beginning of the program a0 has the number of arguments
# so we will save it in the argc variable
la t1,argc
sw a0,0(t1)

# at the beginning of the program a1 has a pointer to the argument strings
# so we save it because we may need a1 for system calls
la t1,argv
sw a1,0(t1)

#Now that the argument data is stored away, we can access it even if it is overwritten.
#For example, the putstring function uses a0 for system call number 4, which prints a string

la s0,title
jal putstring

li t0,16    #change radix
la t1,radix
sb t0,0(t1)

li t0,1    #change width
la t1,int_width
sb t0,0(t1)


# next, we load argc from the memory so we can display the number of arguments
la t1,argc
lw s0,0(t1)
#jal putint

beq s0,zero,exit # if the number of arguments is zero, exit the program because nothing else to print

# this section processes the filename and opens the file from the first argument

jal next_argument
#jal putstring
mv s11,s0 #save the filename in register s11 so we can use it any time

li a7,1024 # open file call number
mv a0,s11  # copy filename for the open call
li a1,0    # read only access for the file we will open (rars does not support read+write mode)
ecall

mv s0,a0
#jal putint

blt s0,zero,file_error # branch if argc is not equal to zero

mv s9,s0 # save the find handle in register s9
la s0,file_message_yes
#jal putstring
jal hexdump

j exit

file_error:

la s0,file_message_no
jal putstring


j exit

exit:
li a7, 10     # exit syscall
ecall

# this is the hexdump function

hexdump:
addi sp,sp,-4
sw ra,0(sp)

la s0,hex_message
jal putstring
mv s0,s11
jal putstring
jal putline

li t0,0    #disable automatic newlines after putint
la t1,int_newline
sb t0,0(t1)

li, s10,0 # we will use s10 register as current offset

hex_read_row:
li a7,63        # read system call
mv a0,s9        # file handle
la a1,file_data # where to store data
li a2,16        # how many bytes to read
ecall           # a0 will have number of bytes read after this call

mv s3,a0 #save a0 to s3 to keep count of how many bytes read
mv s2,a0 #save a0 to s2 to keep count of how many bytes read

beq a0,zero,hexdump_end

li s0,8    #change width
la s1,int_width
sb s0,0(s1)

mv s0,s10
add s10,s10,s3
jal putint
jal putspace

li s0,2    #change width to 2 for the bytes printed this row
la s1,int_width
sb s0,0(s1)

la s1,file_data
hex_row_print:
lb s0,0(s1)
jal putint
jal putspace
addi s1,s1,1

addi s2,s2,-1
bne s2,zero,hex_row_print

#pad the row with extra spaces

mv t2,s3
li t3,16
extra_row_space:
beq t2,t3,extra_row_space_complete
la s0,space_three
jal putstring
addi t2,t2,1
j extra_row_space
extra_row_space_complete:

#now the hex form of the bytes are printed
#we will filter the text form and also print it

li s2,0
la s1,file_data
char_filter:
lb s0,0(s1)

#if char is below 0x20 or above 0x7E, it is outside the range of printable characters

li t5,0x20
blt s0,t5,not_printable
li t5,0x7E
bgt s0,t5,not_printable

j next_char_index

not_printable:
li s0,'.'
sb s0,0(s1)

next_char_index:
addi s1,s1,1
addi s2,s2,1
blt s2,s3,char_filter

li s0,0
#add s1,s1,s3
sb s0,0(s1)   #terminate string with a zero

la s0,file_data
jal putstring


jal putline

j hex_read_row

hexdump_end:
lw ra,0(sp)
addi sp,sp,4
jr ra

# this function gets the next command line argument and returns it in s0
# it also decrements the argc variable so that it can be checked for 0 to exit the program if needed by the main program

next_argument:

la t1,argv
lw t0,0(t1) #load the string pointer located in argv into t0 register
lw s0,0(t0) #load the data being pointed to by t0 into s0 for displaying the string
addi t0,t0,4 #add 4 to the pointer
sw t0,0(t1)  #store the pointer so it will be loaded at the next string if the loop continues

# load the number of arguments from memory, subtract 1, store back to memory
# then use to compare and loop if nonzero
la t1,argc
lw t0,0(t1)

addi t0,t0,-1
sw t0,0(t1)

jr ra


putline:
li a7,11
li a0,10
ecall
jr ra

putspace:
li a7,11
li a0,' '
ecall
jr ra


















putstring:
li a7,4      # load immediate, v0 = 4 (4 is print string system call)
mv a0,s0  # load address of string to print into a0
ecall
jr ra

#this is the intstr function, the ultimate integer to string conversion function
#just like the Intel Assembly version, it can convert an integer into a string
#radixes 2 to 36 are supported. Digits higher than 9 will be capital letters

intstr:

la t1,int_newline # load target index address of lowest digit
addi t1,t1,-1

lb t2,radix     # load value of radix into t2
lb t4,int_width # load value of int_width into t4
li t3,1         # load current number of digits, always 1

digits_start:

remu t0,s0,t2 # t0=remainder of the previous division
divu s0,s0,t2 # s0=s0/t2 (divide s0 by the radix value in t2)

li t5,10 # load t5 with 10 because RISC-V does not allow constants for branches
blt t0,t5,decimal_digit
bge t0,t5,hexadecimal_digit

decimal_digit: # we go here if it is only a digit 0 to 9
addi t0,t0,'0'
j save_digit

hexadecimal_digit:
addi t0,t0,-10
addi t0,t0,'A'

save_digit:
sb t0,(t1) # store byte from t0 at address t1
beq s0,zero,intstr_end
addi t1,t1,-1
addi t3,t3,1
j digits_start

intstr_end:

li t0,'0'
prefix_zeros:
bge t3,t4,end_zeros
addi t1,t1,-1
sb t0,(t1) # store byte from t0 at address t1
addi t3,t3,1
j prefix_zeros
end_zeros:

mv s0,t1

jr ra

#this function calls intstr to convert the s0 register into a string
#then it uses a system call to print the string
#it also uses the stack to save the value of s0 and ra (return address)

putint:
addi sp,sp,-8
sw ra,0(sp)
sw s0,4(sp)
jal intstr
#print string
li a7,4      # load immediate, v0 = 4 (4 is print string system call)
mv a0,s0  # load address of string to print into a0
ecall
lw ra,0(sp)
lw s0,4(sp)
addi sp,sp,8
jr ra




# RISC-V does not allow constants for branches
# Because of this fact, the RISC-V version of strint
# requires a lot more code than the MIPS version
# Whatever value I wanted to compare in the branch statement
# was placed in the t5 register on the line before the conditional branch
# Even though it is completely stupid, it has proven to work

strint:

mv t1,s0 # copy string address from s0 to t1
li s0,0

lb t2,radix     # load value of radix into t2

read_strint:
lb t0,(t1)
addi t1,t1,1
beq t0,zero,strint_end

#if char is below '0' or above '9', it is outside the range of these and is not a digit
li t5,'0'
blt t0,t5,not_digit
li t5,'9'
bgt t0,t5,not_digit

#but if it is a digit, then correct and process the character
is_digit:
andi t0,t0,0xF
j process_char

not_digit:
#it isn't a digit, but it could be perhaps and alphabet character
#which is a digit in a higher base

#if char is below 'A' or above 'Z', it is outside the range of these and is not capital letter
li t5,'A'
blt t0,t5,not_upper
li t5,'Z'
bgt t0,t5,not_upper

is_upper:
li t5,'A'
sub t0,t0,t5
addi t0,t0,10
j process_char

not_upper:

#if char is below 'a' or above 'z', it is outside the range of these and is not lowercase letter
li t5,'a'
blt t0,t5,not_lower
li t5,'z'
bgt t0,t5,not_lower

is_lower:
li t5,'a'
sub t0,t0,t5
addi t0,t0,10
j process_char

not_lower:

#if we have reached this point, result invalid and end function
#this is only reached if the byte was not a valid digit or alphabet character
j strint_end

process_char:

bgt t0,t2 strint_end #;if this value is above or equal to radix, it is too high despite being a valid digit/alpha


mul s0,s0,t2 # multiply s0 by the radix
add s0,s0,t0     # add the correct value of this digit

j read_strint # jump back and continue the loop if nothing has exited it

strint_end:

jr ra

I have translated the MIPS version of my chastelib library into RISC-V. The source includes some relevant changes between the two architectures. Both RISC-V and MIPS are very different from Intel Assembly. However, now that the translation is complete, I can run them in simulators and create almost any program that I would have the skill to do in Intel assembly.

I learned this language from this book by Robert Winkler.
https://leanpub.com/riscvassemblyprogramming

# This is the source of the RISC-V version of chastelib
# The four basic functions have been translated from Intel x86 Assembly
# They are as follows
#
# putstring (prints string pointed to by s0 register)
# intstr (converts integer in s0 register to a string)
# putint (prints integer in s0 register by use of the previous two functions)
# strint (converts a string pointed to by s0 register into an integer in s0)
#
# Most importantly, the intstr and strint functions depend on a global variable (radix)
# In fact, these two functions are the foundation of everything.
# They can convert to and from any radix from 2 to 36
#
# There is also a MIPS assembly source of this library.
# The primary differences between the two assembly languages from my experience are:
# RISC-V requires registers for all branch comparisons
# RISC-V uses ecall but MIPS uses syscall
# RISC-V selects system call with a7 but MIPS uses $v0
# RISC-V does not use dollar signs ($) in the name of registers but MIPS does

.data
title: .asciz "A test of Chastity's integer and string conversion functions.\n"

# test string of integer for input
test_int: .asciz "10011101001110011110011"

#this is the location in memory where digits are written to by the putint function
int_string: .byte '?':32
int_newline: .byte 10,0
radix: .byte 2
int_width: .byte 4

.text
main:

la s0,title
jal putstring

li s0,0 #we will load the $s0 register with the number we want to convert to string
li s1,16

loop:
jal putint
addi s0,s0,1
blt s0,s1,loop

la s0,test_int # convert string to integer
jal strint

li t0,10    #change radix
la t1,radix
sb t0,0(t1)

li t0,8    #change width
la t1,int_width
sb t0,0(t1)

jal putint

li   a7, 10     # exit syscall
ecall

putstring:
li a7,4      # load immediate, v0 = 4 (4 is print string system call)
mv a0,s0  # load address of string to print into a0
ecall
jr ra

#this is the intstr function, the ultimate integer to string conversion function
#just like the Intel Assembly version, it can convert an integer into a string
#radixes 2 to 36 are supported. Digits higher than 9 will be capital letters

intstr:

la t1,int_newline # load target index address of lowest digit
addi t1,t1,-1

lb t2,radix     # load value of radix into t2
lb t4,int_width # load value of int_width into t4
li t3,1         # load current number of digits, always 1

digits_start:

remu t0,s0,t2 # t0=remainder of the previous division
divu s0,s0,t2 # s0=s0/t2 (divide s0 by the radix value in t2)

li t5,10 # load t5 with 10 because RISC-V does not allow constants for branches
blt t0,t5,decimal_digit
bge t0,t5,hexadecimal_digit

decimal_digit: # we go here if it is only a digit 0 to 9
addi t0,t0,'0'
j save_digit

hexadecimal_digit:
addi t0,t0,-10
addi t0,t0,'A'

save_digit:
sb t0,(t1) # store byte from t0 at address t1
beq s0,zero,intstr_end
addi t1,t1,-1
addi t3,t3,1
j digits_start

intstr_end:

li t0,'0'
prefix_zeros:
bge t3,t4,end_zeros
addi t1,t1,-1
sb t0,(t1) # store byte from t0 at address t1
addi t3,t3,1
j prefix_zeros
end_zeros:

mv s0,t1

jr ra

#this function calls intstr to convert the s0 register into a string
#then it uses a system call to print the string
#it also uses the stack to save the value of s0 and ra (return address)

putint:
sw ra,0(sp)
sw s0,4(sp)
jal intstr
#print string
li a7,4      # load immediate, v0 = 4 (4 is print string system call)
mv a0,s0  # load address of string to print into a0
ecall
lw ra,0(sp)
lw s0,4(sp)
jr ra




# RISC-V does not allow constants for branches
# Because of this fact, the RISC-V version of strint
# requires a lot more code than the MIPS version
# Whatever value I wanted to compare in the branch statement
# was placed in the t5 register on the line before the conditional branch
# Even though it is completely stupid, it has proven to work

strint:

mv t1,s0 # copy string address from s0 to t1
li s0,0

lb t2,radix     # load value of radix into t2

read_strint:
lb t0,(t1)
addi t1,t1,1
beq t0,zero,strint_end

#if char is below '0' or above '9', it is outside the range of these and is not a digit
li t5,'0'
blt t0,t5,not_digit
li t5,'9'
bgt t0,t5,not_digit

#but if it is a digit, then correct and process the character
is_digit:
andi t0,t0,0xF
j process_char

not_digit:
#it isn't a digit, but it could be perhaps and alphabet character
#which is a digit in a higher base

#if char is below 'A' or above 'Z', it is outside the range of these and is not capital letter
li t5,'A'
blt t0,t5,not_upper
li t5,'Z'
bgt t0,t5,not_upper

is_upper:
li t5,'A'
sub t0,t0,t5
addi t0,t0,10
j process_char

not_upper:

#if char is below 'a' or above 'z', it is outside the range of these and is not lowercase letter
li t5,'a'
blt t0,t5,not_lower
li t5,'z'
bgt t0,t5,not_lower

is_lower:
li t5,'a'
sub t0,t0,t5
addi t0,t0,10
j process_char

not_lower:

#if we have reached this point, result invalid and end function
#this is only reached if the byte was not a valid digit or alphabet character
j strint_end

process_char:

bgt t0,t2 strint_end #;if this value is above or equal to radix, it is too high despite being a valid digit/alpha


mul s0,s0,t2 # multiply s0 by the radix
add s0,s0,t0     # add the correct value of this digit

j read_strint # jump back and continue the loop if nothing has exited it

strint_end:

jr ra

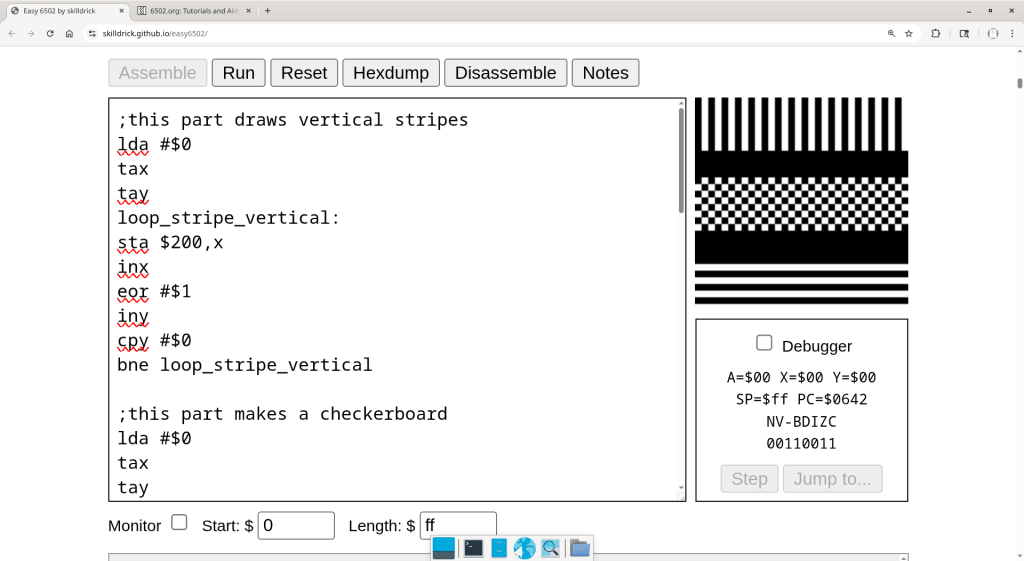

As if learning Intel x86 Assembly wasn’t weird enough, I have decided to learn some basic 6502 Assembly. This CPU was used in the NES and the Apple 2 computers. I found an Easy 6502 emulator that runs entirely within a web page. The only form of output is the pixels in a window that represent memory addresses on a fictional computer. I made a very cool demo. Below is my source code.

;this part draws vertical stripes
lda #$0
tax
tay
loop_stripe_vertical:
sta $200,x
inx
eor #$1
iny
cpy #$0
bne loop_stripe_vertical

;this part makes a checkerboard
lda #$0
tax
tay
loop_checkerboard:
sta $380,x
inx
eor #$1

iny
cpy #$20
bne color_keep_checker

pha ;push A to the stack
lda #$0 ;load A with zero
tay ;transfer A to Y
pla ;pull original A back from stack
eor #$1

color_keep_checker:
cpx #$0
bne loop_checkerboard

;this part draws horizontal stripes
lda #$0
tax
tay
loop_stripe_horizontal:
sta $500,x
inx
;eor #$1

iny
cpy #$20
bne color_keep

pha ;push A to the stack
lda #$0 ;load A with zero
tay ;transfer A to Y
pla ;pull original A back from stack
eor #$1

color_keep:
cpx #$0
bne loop_stripe_horizontal
